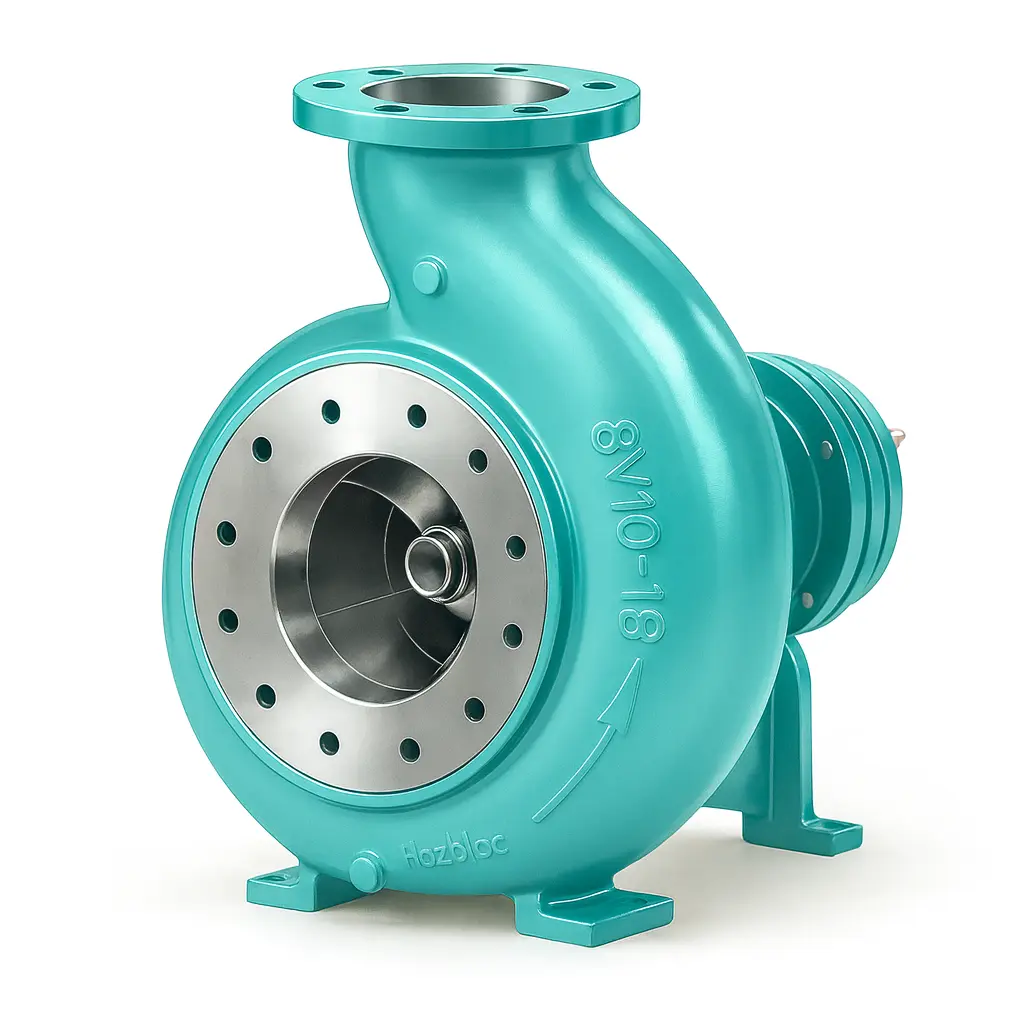

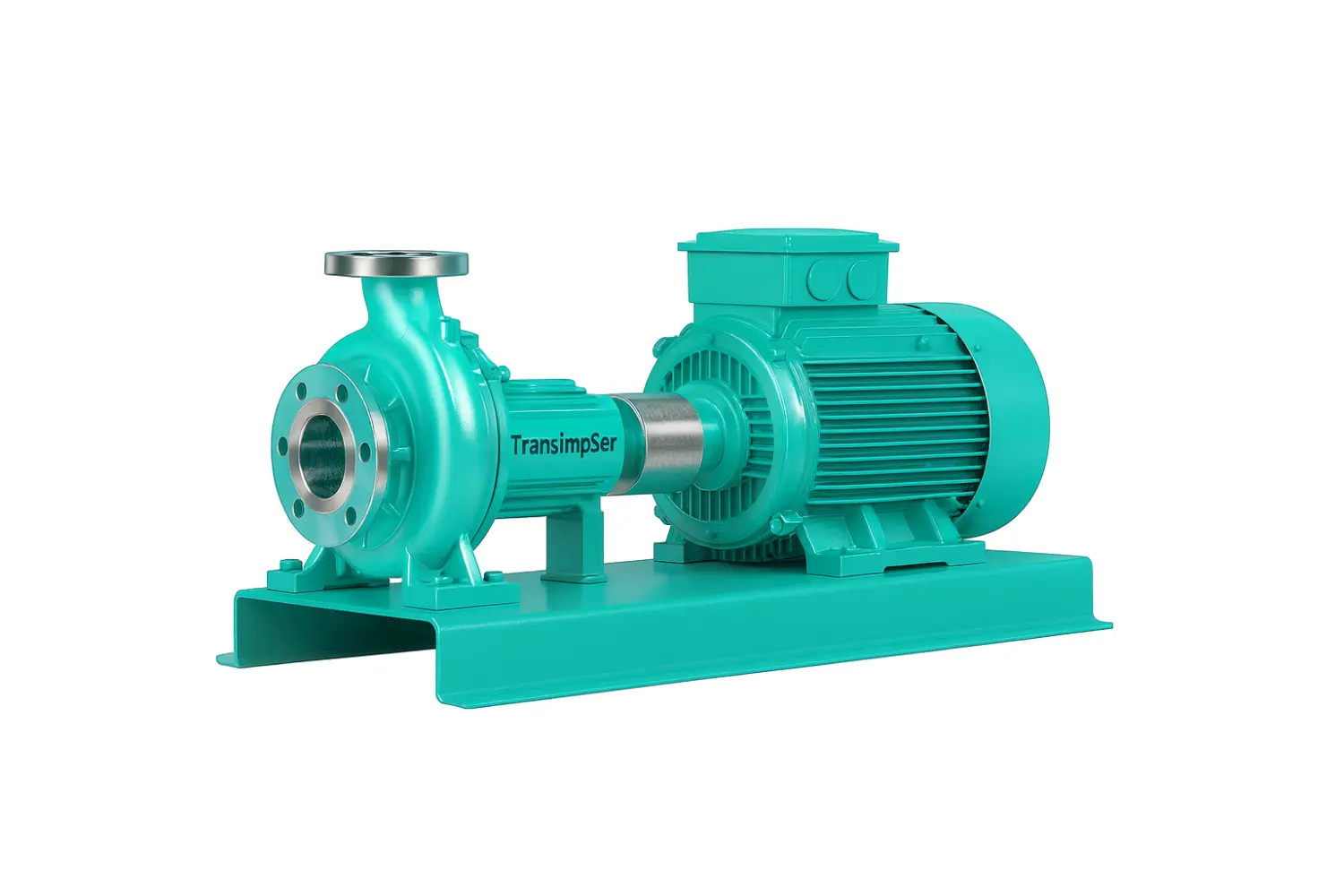

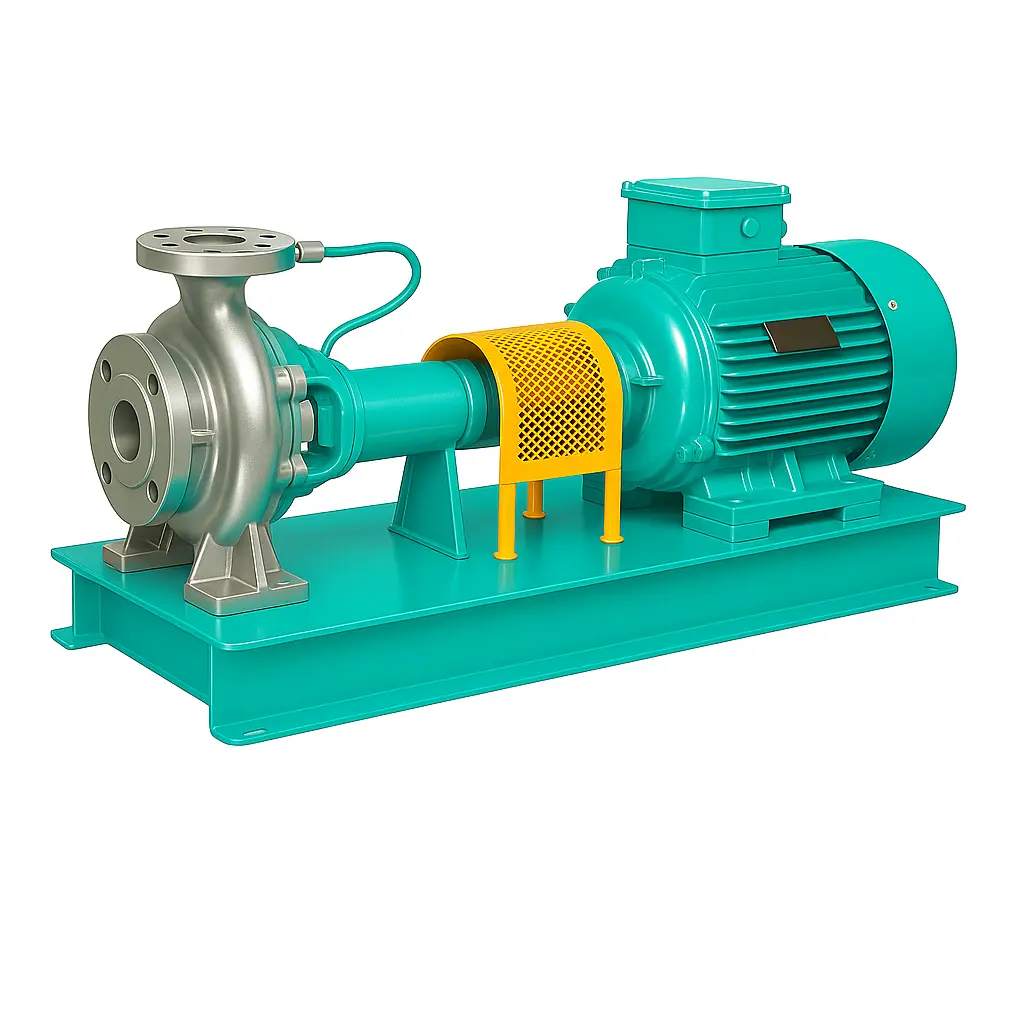

ISO-2858 DESIGN CENTRIFUGAL PUMPS
KEY FEATURES:
Standardized and modular design
Flanges according to ISO 7005 PN 16
Outstanding hydraulic performance
High efficiency impeller
Easy maintenance through the Back-Pull-Out principle
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Max. capacity: 1500 m³/h
Max. delivery head: 140 m
Max. liquid temp.: 250°C
Max. pressure: 16 bar (10 bar)
Max. speed: 3600 rpm

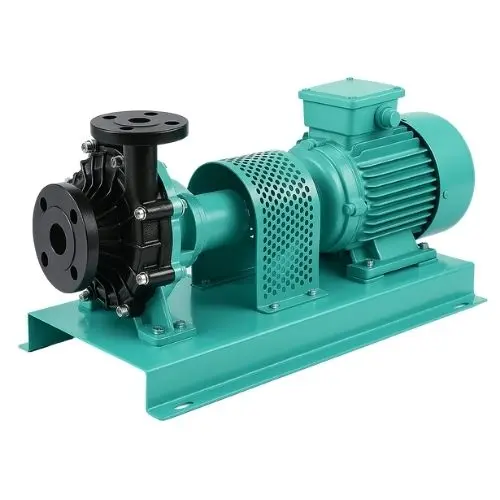

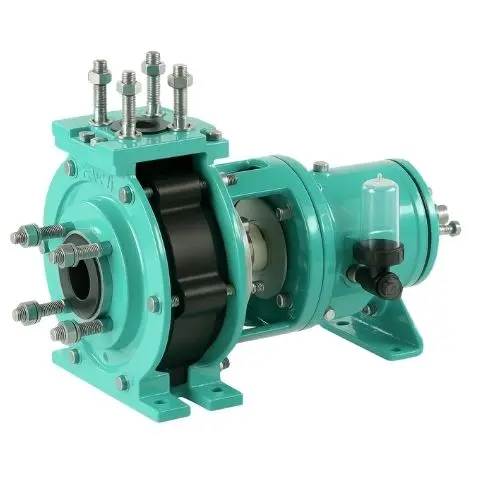

ISO-2858 DESIGN NON-METALLIC CENTRIFUGAL PUMPS
Key Features:
Cast iron armours with injection moulded wetted parts are designed to handle higher hydraulic pressures and flange loads
Non metallic pumps are excellent alternatives to expensive super alloy pumps for hazardous, corrosive and toxic media
Design Specifications:
Capacity [Q]: up to 210 m³/hr (925 US gpm) 1100 US gpm (250 m³/hr)
Head [H]: up to 100 m (328 ft)/40 D (122 m)
Motor Power (P): up to 55 kW (75 hp) 120 hp (90 kW)
Viscosity: up to 150 mPa (cP)
Suction Lift: 8 m (26 ft) with priming chamber*
ANSI End-Suction Centrifugal Process Pump (A196 Series)
Key Features:
Fully Open Impellers
Highly Engineered Seal Chambers
Variety of Mechanical Seals’ Compatibility
Dynamic Sealing option available
Hybrid Bearing Isolators
Premium Severe Duty Thrust Bearings
Optimized Oil-Sump Design
LTA Power End for High Load Applications
Engineered Pump Mounting Systems
Specifications
Capacity: up to 7000 GPM (1590 m3/h)
Head: up to 730 feet (223 m)
Temperature: up to 700° F (371° C)
Pressure: up to 375 PSIG (26 bar)
Safety Features
Heavy Duty Casings are designed with higher wall thickness.
All Pressure Retaining Components are 100% Hydrostatic Tested.
Coupling Guards comply with ANSI B15.1 Standard.
Optional : Shaft Guard on Adaptor.

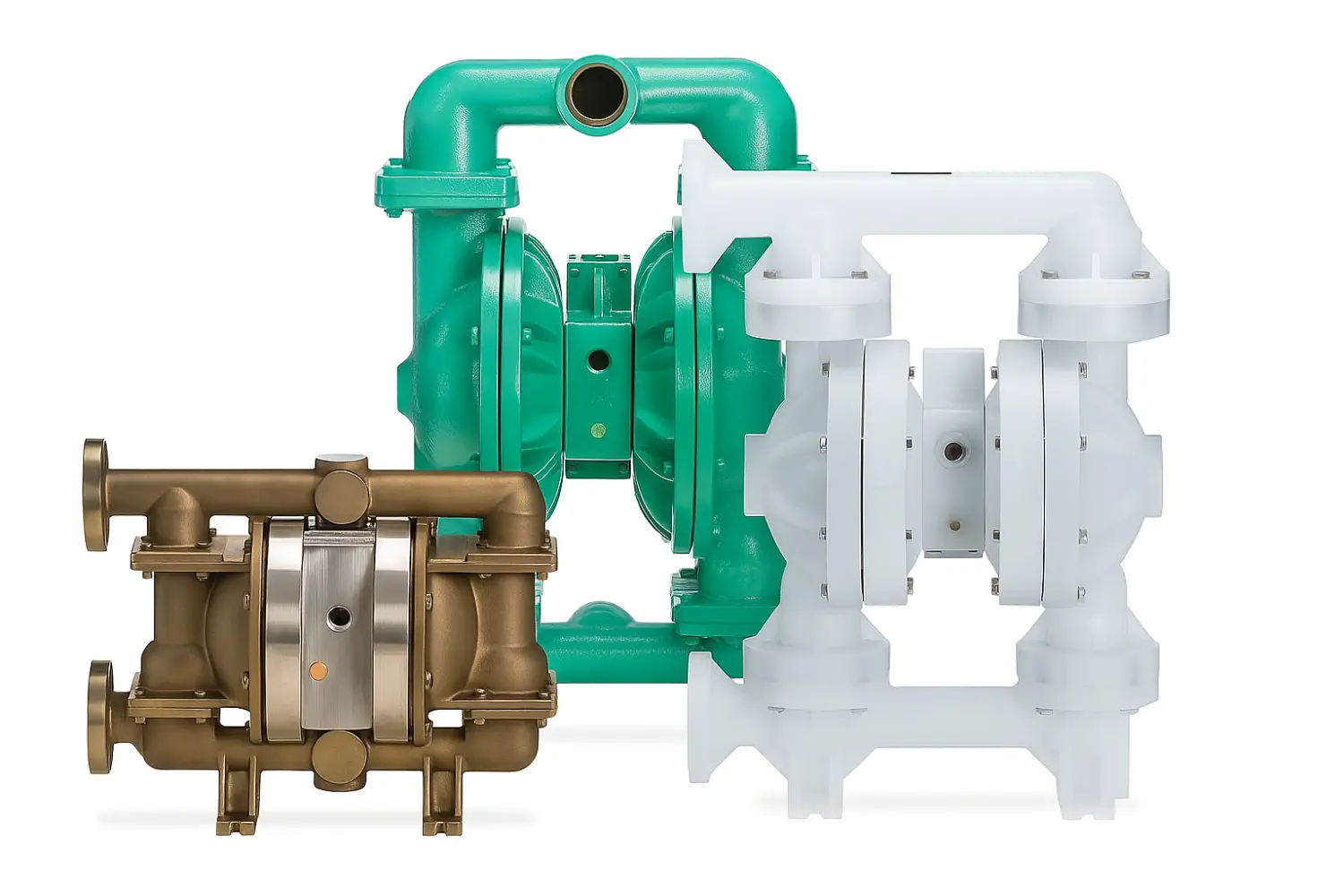

SELF-PRIMING MULTIPURPOSE PERIPHERAL FLOW AODD PUMP
Key Features:
High performance and long life diaphragm – Abrasive and corrosive materials handled without problems
No rotating parts – Handle fluids with high solid contents
Wide range of material combinations – Low and high viscous liquids, alkalis or acids
MOC: PP, TEFLON, SS304, SS316
Design Specifications:
Max Flow: Upto 1590 m³/h (7000 GPM)
Max Head: Upto 223 m (730 ft)
Max Temperature: 377°C (700°F)

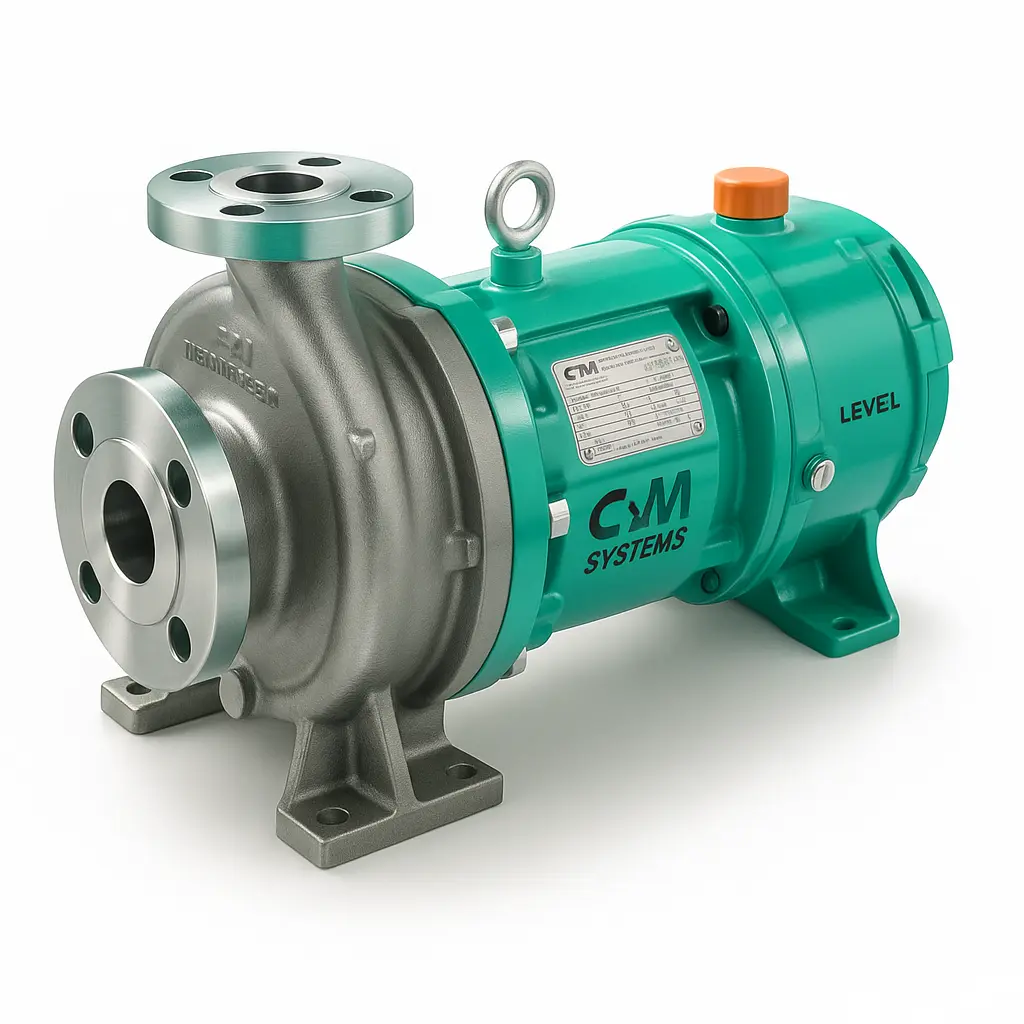

ISO-2858 DESIGN MAG DRIVE PUMPS METALLIC/NON-METALLIC
KEY FEATURES:
Type: Single stage, Horizontal Centrifugal pump
Hydraulic Performance: DIN EN ISO 2858
Technical Design: DIN EN ISO 15783
Drive: Permanent Magnet, maintenance free
Design Specifications:
Capacities: 0.25-200 m³/h
Heads: 3-90 m
Temperatures: -100°C to +350°C
Kinematic Viscosities: 0.5-350 mm²/s
AIR COOLED CENTRIFUGAL PUMP FOR THERMAL FLUID / HOT WATER APPLICATIONS
Key Features:
Long cooling length displacing seal away from the pumped liquid
Back vanes and labyrinth prevent solids from reaching bearing and seals
Product lubricated slide bearing
Standard mechanical seal
Design Specifications:
Casing: Nodular cast iron
Impeller: Cast iron, Stainless steel
Max. capacity: 350 m³/h | 154 GPM [50HZ] 400 m³/h | 1761 GPM [60HZ]
Max. delivery head: 110m / 36ft [50HZ] 160m / 52ft [60HZ]
Temp. upto 350°C
LOBE PUMP
KEY FEATURES:
Positive Displacement: Delivers a fixed volume of fluid per rotation.
Rotary Motion: Uses rotating lobes to move fluid.
Non-Contacting Lobes: Lobes do not touch, minimizing wear and product damage.
External Timing Gears: Ensures synchronized lobe rotation.
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Max Flow: Up to 12000 LPH
Max Head: Up to 70 m
Max Temperature: 300°C

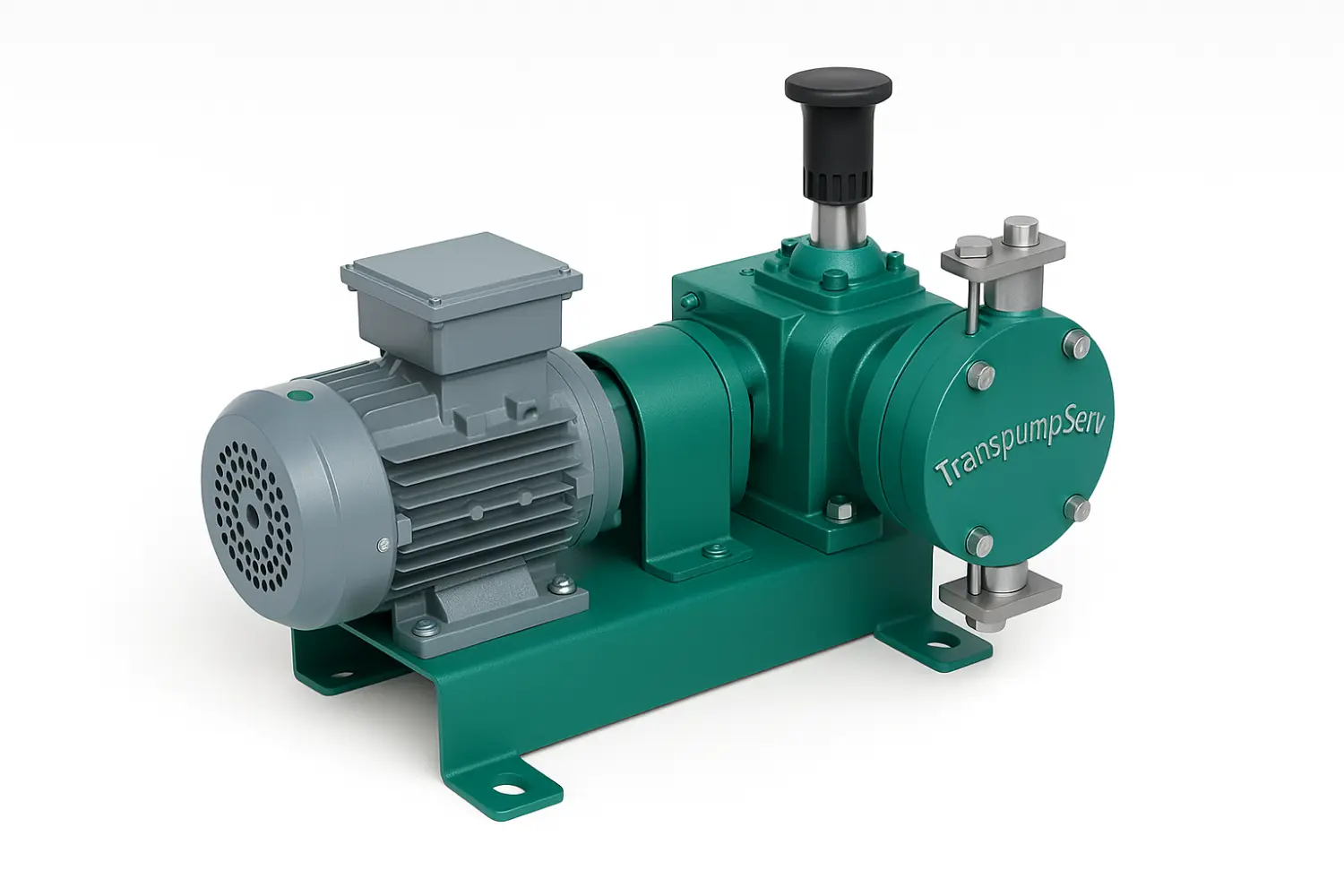

DOSING PUMPS
KEY FEATURES:
Glandless design and entirely leak-proof operation
Flow rate is linear to stroke length variation
Metering Accuracy almost independent of back pressure
Sandwich Diaphragms always balanced between the pressure exerted by the hydraulic oil and the liquid to be dosed
Design Specifications:
Max Flow: Upto 1181 LPH
Max Pressure: 175 PSI (12 bar)
Discharged size: Customised
ANSI Vertical In-Line Centrifugal Chemical Process Pump (A996 Series)
Key Features:
Accommodate in very small space directly in the pipeline as Valve
Eliminates Pump alignment work in the field
Lower Pump Installation Cost
Fully Open Impellers
Highly Engineered Seal Chambers
Variety of Mechanical Seals’ Compatibility
Specifications
Capacities up to 1400 GPM (318 m3/h)
Heads up to 700 feet (213 m)
Temperatures up to 500° F (260° C)
Pressures up to 375 PSIG (2586 kPa)
Safety Features
Heavy Duty Casings are designed with higher wall thickness.
All Pressure Retaining Components are 100% Hydrostatic Tested.
Coupling Guards comply with ANSI B15.1 Standard.
Optional : Shaft Guard on Adaptor.
VERTICAL LONG SHAFT PUMPS
KEY FEATURES:
Standardized and modular design
Magnetic driven option
Customized sump depths up to 10 m
Re-producible optimized hydraulics
High efficiency impeller
Design Specifications:
Max. capacity: 1500 m³/hr
Max. delivery head: 160 m
Max. liquid temp: 160°C
Max. pressure: 1600 kPa (16 bar), for API 610 up to 3500 kPa (35 bar)
GEAR PUMPS
KEY FEATURES:
Self Priming Pumps With 5 Mtr Suction Lifts
Compact Size
Low Noise
High Efficiency
Easy Maintenance
Double Helical Gears To Reduce Axial Thrust
Design Specifications:
Capacity: Up to 200 m³/hr
Head: Up to 120 Mtr.
Discharge Size: 12 mm to 200 mm
Temperature: Up to 250°C
SCREW PUMPS
KEY FEATURES:
Positive Displacement
Rotary Motion
One or Multiple Screws
Intermeshing Screws
Self-Priming (in many designs)
Handles Viscous Fluids
Can Handle Solids (depending on design)
Low Pulsation
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Max Flow: Up to 68 m³/h
Max Head: Up to 100 m
Max Temperature: 250°C
