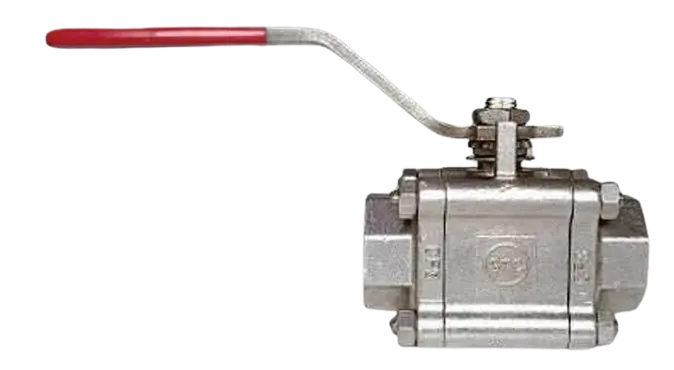

3 PC FLOATING BALL VALVE
- FIRE SAFE
- ANTI-STATIC DESIGN
- BLOWOUT PROOF STEM
- Special MOC can be provided as per customers’ requirement.
- Any special request can be accommodated as per customers’ requirement.

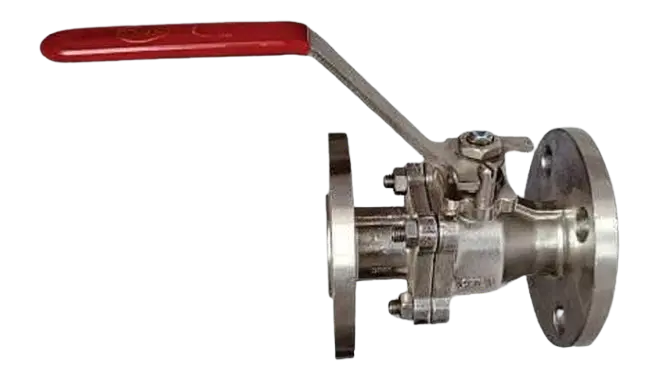

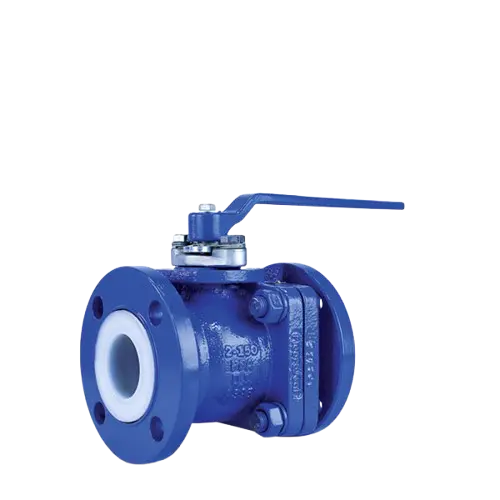

2 PC FLOATING BALL VALVE
- FIRE SAFE
- ANTI-STATIC DESIGN
- BLOWOUT PROOF STEM
- Valve up to 4” (#300) are provided with lever operated.
- Valve above 6” (#600) are provided with gear/ pneumatic actuator.
- Special MOC can be provided as per customers’ requirement.
- Any special request can be accommodated as per customers’ requirement

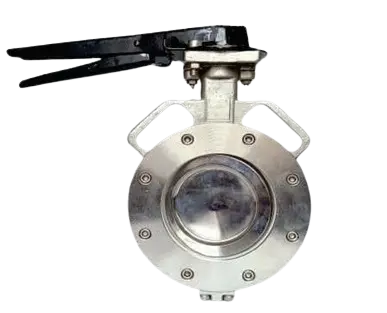

BUTTERFLY VALVE
- DESIGNSTANDARDS:-BSEN593/API609
- TESTINGSTANDARDS:- API598/EN12266-1
- SIZE:- DN 40 TO DN 700,PN 10 TO PN 16
- CONCENTRIC :The shaft is aligned with body center line.
- SINGLE-OFFSET :The shaft is offset from its body center line.
- DOUBLE-OFFSET :The shaft is offset from its body center line. The shaft is offset from pipe center line.
- TRIPLE-OFFSET :The shaft is offset from its body center line. The shaft is offset from pipe center line + conical offset shape in its seal & disc connection.

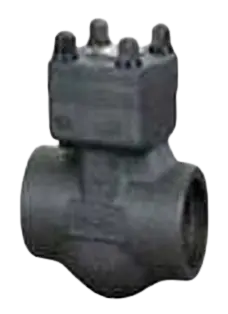

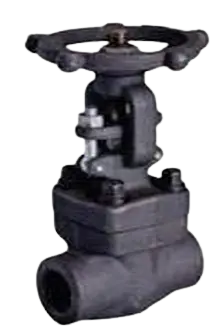

FORGED STEEL GATE & GLOBE VALVE
- DESIGNSTANDARDS:-API 602/ENISO 15761/ASMEB16.34020
- SCREWEDEND:-BSP(BS21)/NPT(ASMEB1.20.1)
- SOCKETWELDEND:-ASMEB16.11/BUTTWELD/ASME16.25
- FACETOFACE:-MANUFACTURERS
- TESTINGSTANDARDS:- API598/EN12266-1
- SIZE:- DN15TODN65,CLASS150TO1500
- Special MOC can be provided as per customers’ requirement.
- Valves shall be supplied with welded flanges for class 150/300 if required.
- Air Seat & Back Seat test not applicable for Lift Check Valves.
- Any special request can be accommodated as per customers’ requirement
FORGED STEEL GATE & GLOBE VALVE
- DESIGNSTANDARDS:-API 602/ENISO 15761/ASMEB16.34020
- SCREWEDEND:-BSP(BS21)/NPT(ASMEB1.20.1)
- SOCKETWELDEND:-ASMEB16.11/BUTTWELD/ASME16.25
- FACETOFACE:-MANUFACTURERS
- TESTINGSTANDARDS:- API598/EN12266-1
- SIZE:- DN15TODN65,CLASS150TO1500
- Special MOC can be provided as per customers’ requirement.
- Valves shall be supplied with welded flanges for class 150/300 if required.
- Air Seat & Back Seat test not applicable for Lift Check Valves.
- Any special request can be accommodated as per customers’ requirement

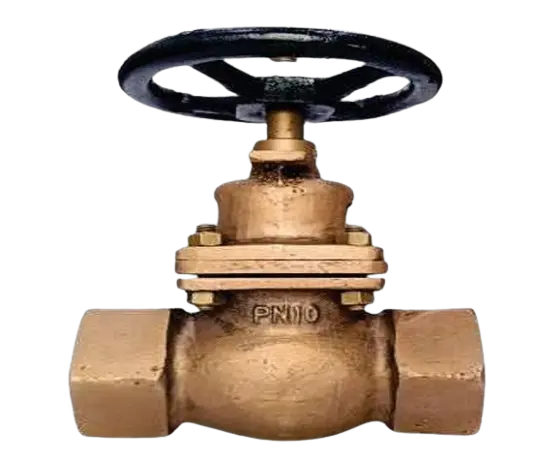

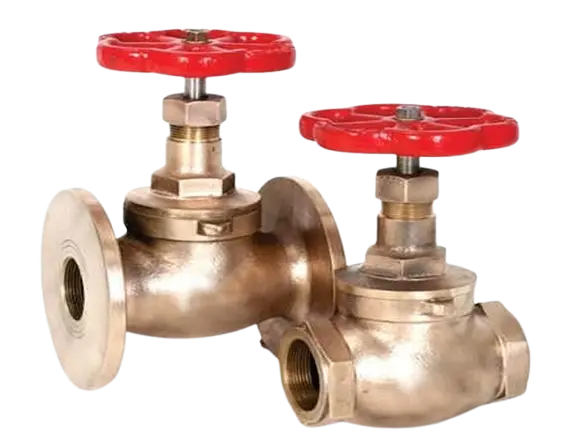

NON-FERROUS METAL VALVES(NON-RISING SPINDLE GLOBE VALVE)
TECHNICAL STANDARDS:
Design Standard: BS 5154 / IS 778
End Connection: Screwed (BSP/NPT) / Flanged (as per ANSI/BS standards)
Testing Standard: API 598 / IS 6157
Pressure Rating: PN16 / Class 150
Size Range: ½” to 4”
ADDITIONAL INFORMATION:
Ideal for water, oil, gas, and steam services
Durable non-rising spindle design for limited space
Made from high-quality bronze/brass
Compact, corrosion-resistant body
Low maintenance, long service life
NON-FERROUS METAL VALVES( RISING SPINDLE GLOBE VALVE)
TECHNICAL STANDARDS:
Design Standard: BS 5154 / IS 778
End Connection: Screwed (BSP/NPT) / Flanged (ANSI/BS/DIN)
Testing Standard: API 598 / IS 6157
Pressure Rating: PN16 / Class 150
Size Range: ½” to 4”
ADDITIONAL INFORMATION:
Rising spindle for visible valve position indication
Suitable for water, oil, gas, and steam applications
Manufactured from corrosion-resistant bronze/brass
Smooth operation and positive shut-off
Ideal for isolation and throttling applications

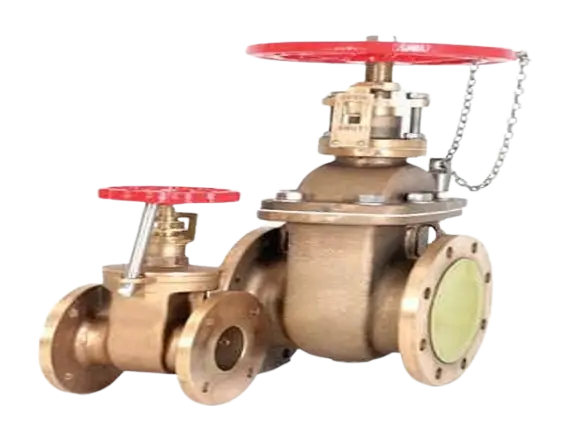

NON-FERROUS METAL VALVES(GATE VALVE)
TECHNICAL STANDARDS:
Design Standard: BS 5154 / IS 778
End Connection: Screwed (BSP/NPT) / Flanged (ANSI/BS/DIN)
Testing Standard: API 598 / IS 6157
Pressure Rating: PN16 / Class 150
Size Range: ½” to 4”
ADDITIONAL INFORMATION:
Full-bore design for minimal flow restriction
Non-rising or rising spindle options available
Suitable for water, oil, gas, and steam applications
Corrosion-resistant bronze/brass construction
Designed for reliable shut-off with low-pressure drop
NON-FERROUS METAL VALVES(BALL VALVE)
TECHNICAL STANDARDS:
Design Standard: BS 5351 / API 608
End Connection: Screwed (BSP/NPT) / Flanged (ANSI/BS/DIN)
Testing Standard: API 598 / EN 12266
Pressure Rating: PN16 / Class 150
Size Range: ½” to 4”
ADDITIONAL INFORMATION:
Quarter-turn operation for quick shut-off
Compact design with minimal pressure drop
Blow-out proof stem and anti-static design
Suitable for water, oil, gas, and air applications
Constructed from durable bronze/brass for corrosion resistance

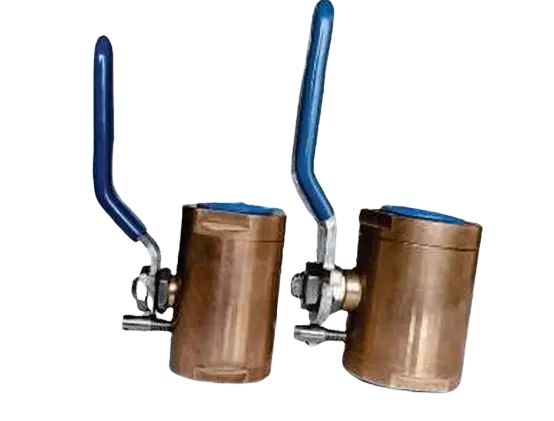

SINGLE PC BALL VALVE
TECHNICAL STANDARDS:
Design Standard: BS 5351 / API 608
End Connection: Screwed (BSP/NPT)
Testing Standard: API 598 / EN 12266
Pressure Rating: PN16 / Class 150
Size Range: ½” to 2”
ADDITIONAL INFORMATION:
One-piece body for compact, leak-proof design
Quarter-turn operation for fast flow control
Reduced port for general utility applications
Suitable for water, oil, gas, and air services
Low maintenance and corrosion-resistant brass/bronze body
2 PC BALL VALVE
TECHNICAL STANDARDS:
Design Standard: BS 5351 / API 608
End Connection: Screwed (BSP/NPT) / Flanged (ANSI/BS/DIN)
Testing Standard: API 598 / EN 12266
Pressure Rating: PN16 / Class 150
Size Range: ½” to 4”
ADDITIONAL INFORMATION:
Two-piece body for easy maintenance and servicing
Full or reduced bore options available
Quarter-turn operation with blow-out proof stem
Suitable for water, oil, gas, and air applications
Durable brass/bronze construction with PTFE seats for smooth operation
3 PC BALL VALVE
TECHNICAL STANDARDS:
Design Standard: BS 5351 / API 608
End Connection: Screwed (BSP/NPT) / Flanged (ANSI/BS/DIN) / Socket Weld
Testing Standard: API 598 / EN 12266
Pressure Rating: PN16 / Class 150
Size Range: ½” to 4”
ADDITIONAL INFORMATION:
Three-piece body for easy inline maintenance without removing from pipeline
Full bore for maximum flow capacity
Quarter-turn operation with blow-out proof stem
PTFE seats ensure tight sealing and smooth operation
Ideal for water, oil, gas, chemical, and steam applications
Durable brass/bronze construction with high service life

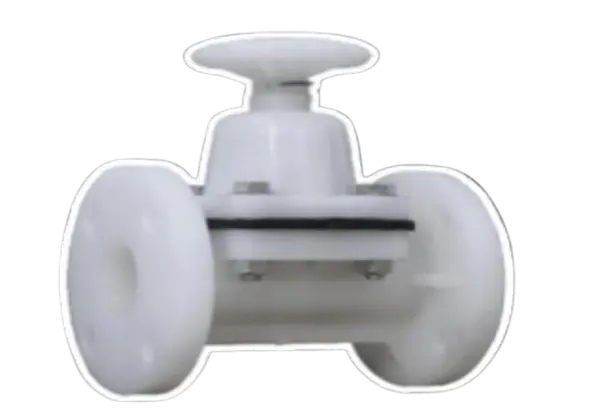

DIAPHRAGM VALVE
TECHNICAL STANDARDS:
Design Standard: BS 5156 / MSS SP-88
End Connection: Flanged (ANSI/BS/DIN) / Screwed / Tri-Clamp
Testing Standard: API 598 / EN 12266
Pressure Rating: PN10–PN16 / Class 150
Size Range: ½” to 6”
ADDITIONAL INFORMATION:
Ideal for handling corrosive, abrasive, or viscous fluids
Non-clogging, leak-proof design with flexible diaphragm
Suitable for chemical, pharmaceutical, food, and water treatment industries
Provides tight shut-off and throttling control
Body materials: Cast Iron, Stainless Steel, or Plastic with EPDM/PTFE diaphragm
BALL TYPE CHECK VALVE
TECHNICAL STANDARDS:
Design Standard: IS 5312 / DIN 3202
End Connection: Flanged (ANSI/BS/DIN)
Testing Standard: API 598 / EN 12266
Pressure Rating: PN10 / PN16
Size Range: 1½” to 12”
ADDITIONAL INFORMATION:
Single moving part – self-cleaning ball design
Suitable for slurry, sewage, viscous, and wastewater applications
Silent operation with low pressure drop
Maintenance-free and clog-resistant
Body materials: Cast Iron, Ductile Iron, or Stainless Steel with Nitrile/EPDM ball

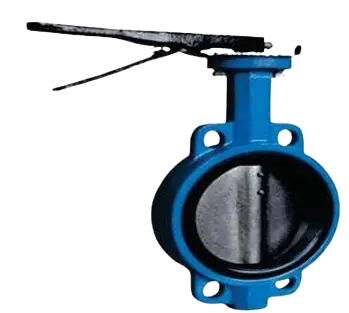

BUTTERFLY VALVE
TECHNICAL STANDARDS:
Design Standard: API 609 / EN 593 / IS 13095
End Connection: Wafer / Lug / Flanged (ANSI/BS/DIN)
Testing Standard: API 598 / EN 12266
Pressure Rating: PN10 / PN16 / Class 150
Size Range: 2” to 48”
ADDITIONAL INFORMATION:
Compact, lightweight, and easy to install
Quarter-turn operation with lever or gear actuator
Suitable for water, air, gas, and light slurry applications
Available with rubber-lined or PTFE-lined discs
Body materials: Cast Iron, Ductile Iron, Stainless Steel

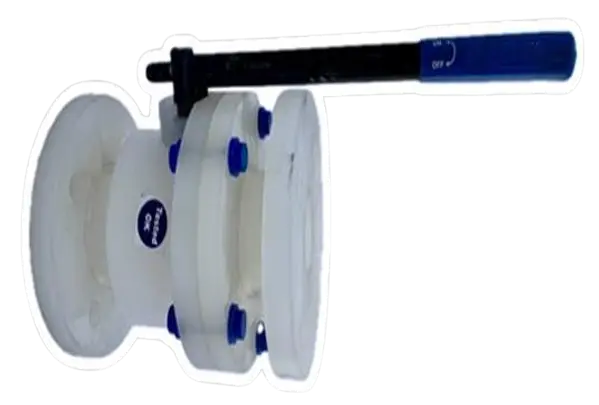

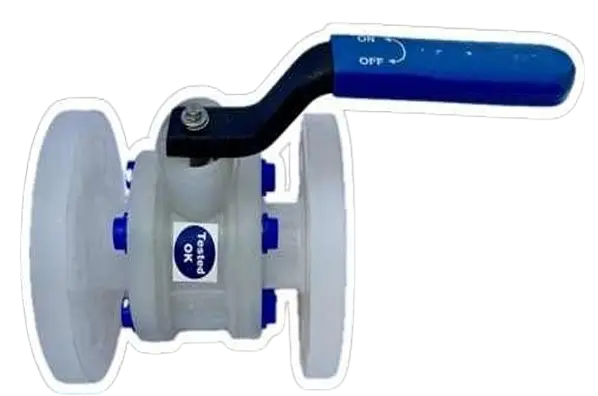

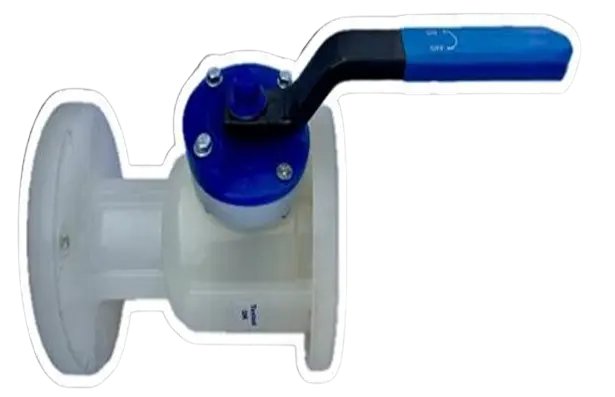

BALL VALVE
Typical Applications:
On/off flow control in pipelines (water, gas, oil, chemicals)
Industrial, residential, and commercial plumbing
HVAC systems
Process industries and automation
Sealing Faces:
PTFE (Teflon) or reinforced PTFE (for tight sealing and chemical resistance)
Metal-to-metal sealing in high-pressure/high-temperature valves

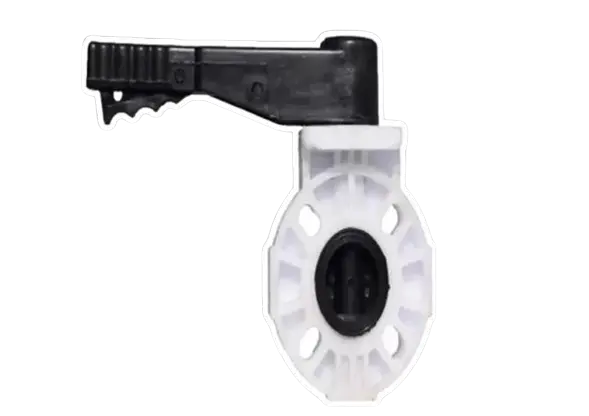

BUTTERFLY VALVE
Typical Applications:
Flow regulation and isolation in water treatment plants
HVAC systems and cooling water
Chemical and food processing industries
Low-pressure applications in pipelines
Sealing Faces:
Elastomers (EPDM, NBR, Viton) for tight sealing
PTFE or other polymer linings for chemical resistance
Metal-to-metal sealing for high-temperature or abrasive services

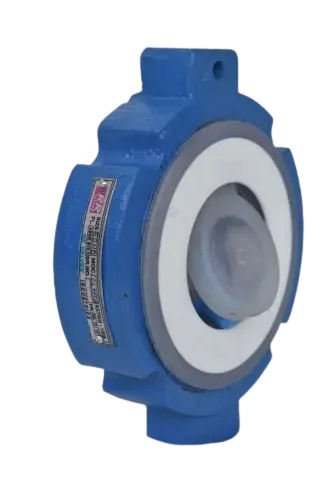

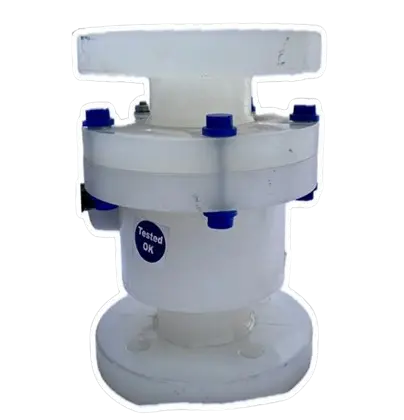

BALL TYPE CHECK
Ball Type Check Valve
Typical Applications:
Preventing backflow in water, oil, and gas pipelines
Pump discharge lines
HVAC systems
Low to medium pressure fluid systems
Sealing Faces:
Metal-to-metal (steel, stainless steel)
Soft seals like rubber or PTFE for better tightness

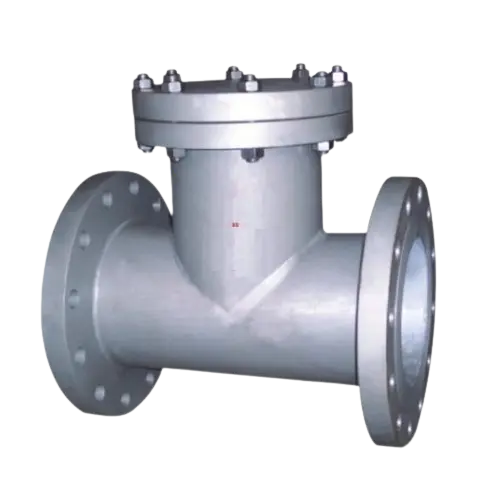

‘T’ TYPE STRAINER
Typical Applications:
Installed in pipelines to filter debris and protect pumps, valves, and equipment
Common in steam, gas, water, and chemical lines
Used in both horizontal and vertical piping systems
Sealing Faces:
Metal-to-metal (cast iron, stainless steel)
Soft gaskets (rubber, PTFE) for leak-proof sealing
SWING CHECK
Typical Applications:
Preventing backflow in water, wastewater, and steam systems
Pump discharge lines and pipelines with low to moderate pressure
HVAC and industrial process piping
Sealing Faces:
Metal-to-metal (stainless steel, cast iron)
Soft seals like rubber or PTFE for tight sealing

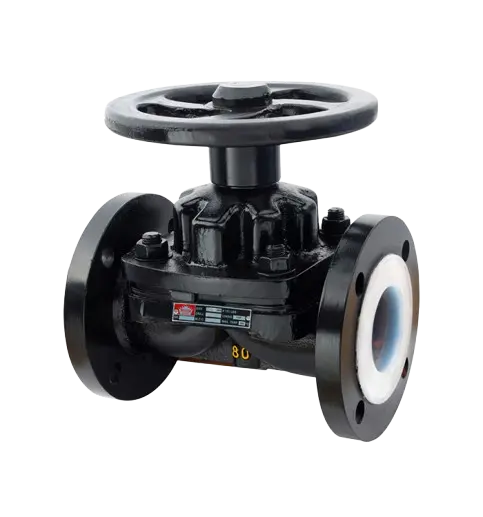

Diaphragm Valve
Typical Applications:
Handling corrosive, abrasive, or viscous fluids
Pharmaceutical, food, and chemical industries
Slurry and wastewater treatment
Flow regulation and shutoff in pipelines
Sealing Faces:
Elastomeric diaphragm (rubber, EPDM, PTFE-lined)
Metal body with soft sealing against the diaphragm
