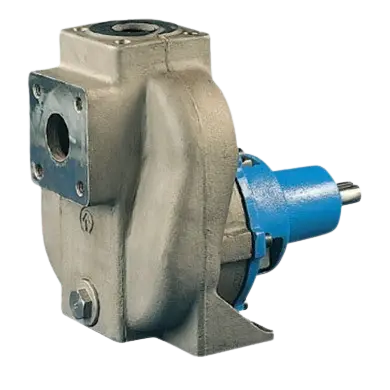

SELF-PRIMING CENTRIFUGAL PUMPS
KEY FEATURES:
Ideal for handling contaminated liquids
Excellent self-priming ability
No non-return valve required in the inlet
Single unbalanced/balanced seals to EN 12756 (DIN 24960)
Negative Suction Upto 8 Meters
Design Specifications:
Casing: Cast iron, Bronze, Stainless steel
Impeller: Cast iron, Bronze, Stainless steel
Max. capacity: 350 m³/h (1540 GPM)
Max. delivery head: 80 m (262 ft)
Max. liquid temp: 95°C (203°F)
Max. pressure: 900 kPa (9 bar) (131 psi)

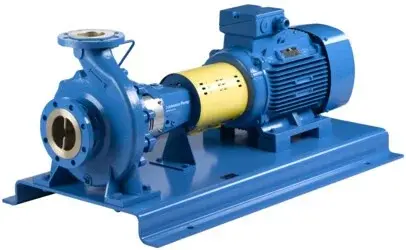

ISO-2858 DESIGN CENTRIFUGAL PUMPS
KEY FEATURES:
Standardized and modular design
Flanges according to ISO 7005 PN 16
Outstanding hydraulic performance
High efficiency impeller
Easy maintenance through the Back-Pull-Out principle
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Max. capacity: 1500 m³/h
Max. delivery head: 140 m
Max. liquid temp.: 250°C
Max. pressure: 16 bar (10 bar)
Max. speed: 3600 rpm

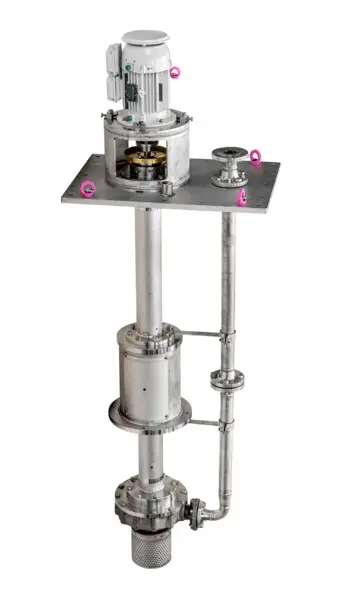

VERTICAL LONG SHAFT PUMPS
KEY FEATURES:
Standardized and modular design
Magnetic driven option
Customized sump depths up to 10 m
Re-producible optimized hydraulics
High efficiency impeller
Design Specifications:
Max. capacity: 1500 m³/hr
Max. delivery head: 160 m
Max. liquid temp: 160°C
Max. pressure: 1600 kPa (16 bar), for API 610 up to 3500 kPa (35 bar)

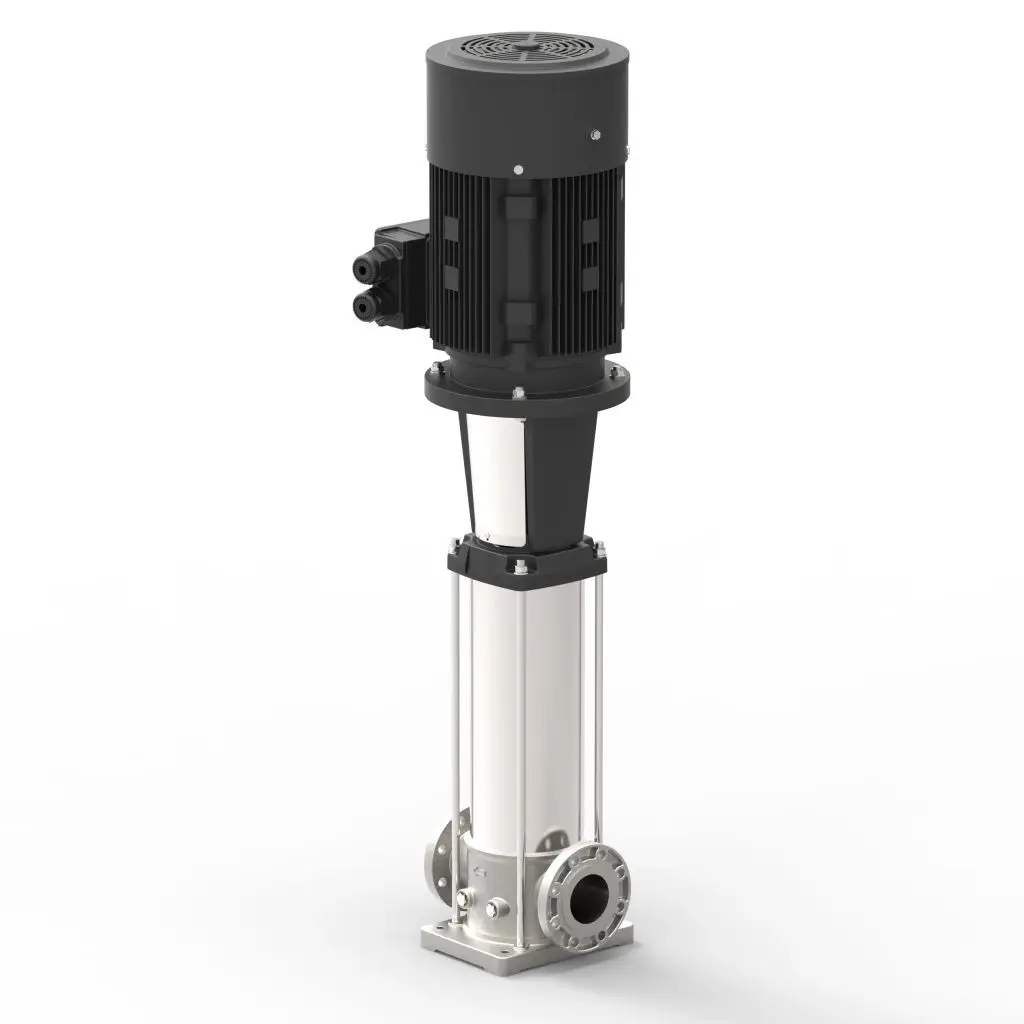

VERTICAL MULTISTAGE PUMPS
KEY FEATURES:
Able to Generate A High Level Of Pressure Serving Fluids To High Head Levels
Direct Drive Pump And Motor Shafts Are Designed For Positive
Air Vent Provided In Casing Cover Ensures Proper Venting To Avoid Dry Run
A Low Axial Thrust Impeller Helps In Extending The Motor Bearing Life
Design Specifications:
Capacity: Up to 1280 m³/hr
Power Range: 0.37-45 kW
Head: Up to 320 Mtr
Discharge Size: 32mm to 100mm
Temperature: -15°C to 120°C

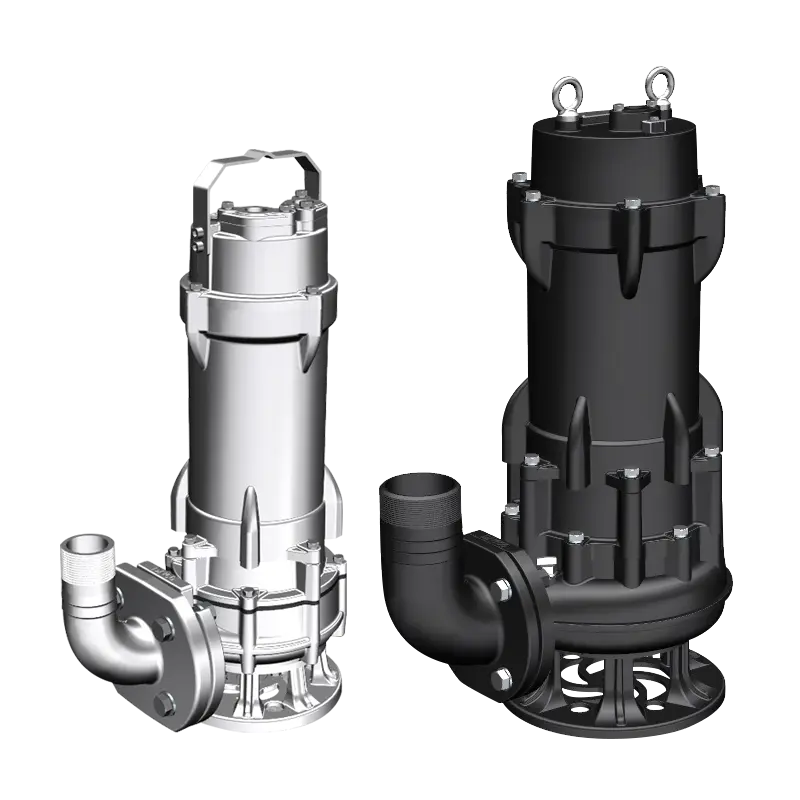

SEWAGE SUBMERSIBLE PUMPS
KEY FEATURES:
The Cutter Feature Ensures No Clogging Of The System
Can Operate Efficiently In Submersed Condition
The Pump Can Easily Handle Solid Particles Up To 50mm In Size
Very Lightweight And Handy In Operation
Design Specifications:
Capacity: Up to 132 m³/hr
Head: Up to 40 Mtr
Temperature: 45°C
HP: 0.75 to 10 (0.1 to 3 HP in single phase)
RPM: Up to 2880
