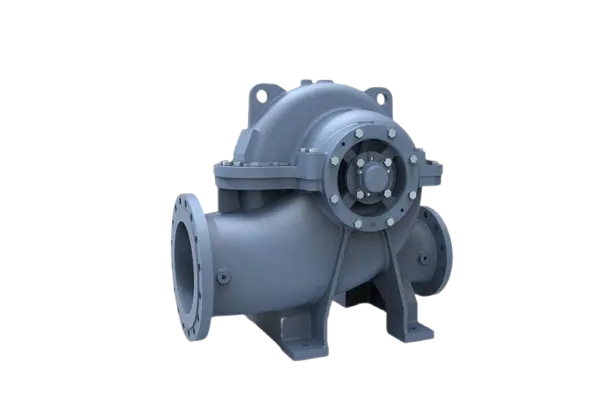

HORIZONTAL SPLIT CASING PUMPS
KEY FEATURES:
Double suction impeller for balanced operation
High efficiency with low NPSH requirement
Robust construction for long service life
Heavy-duty shaft with minimal deflection
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Flow Rate: Up to 20,000 m³/hr
Head: Up to 200 meters
Operating Pressure: Up to 25 bar
Temperature Range: -10°C to +140°C (Depending on material and sealing)
AXIAL FLOW PUMPS
KEY FEATURES:
The Pump Design Includes A Heavy-Duty Thick Metal Suction At The Elbow
Stuffing Box and Impeller, Which Extend The Pump’s Wear Life
High-Efficiency Impeller Available In A Wide Variety Of Vane Angles
Can Discharge A Large Volume Of Fluid At A High Flow Rate
Design Specifications:
Capacity: Up to 5000 m³/hr
Head: Up to 140 Mtr
Discharge Size: 50mm to 500mm
Temperature: Up to 100°C
Speed: Up to 3500 rpm

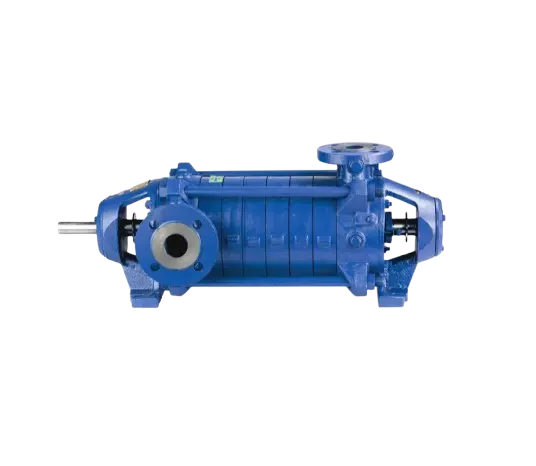

BOILER FEED HIGH PRESSURE PUMP
KEY FEATURES:
High-pressure design for feeding water to boilers
Multistage construction for high head applications
Designed for continuous duty under extreme conditions
Balanced hydraulic design to reduce axial thrust
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Flow Rate: Up to 500 m³/hr
Head: Up to 1000 meters
Operating Pressure: Up to 100 bar
Temperature Range: Up to 180°C

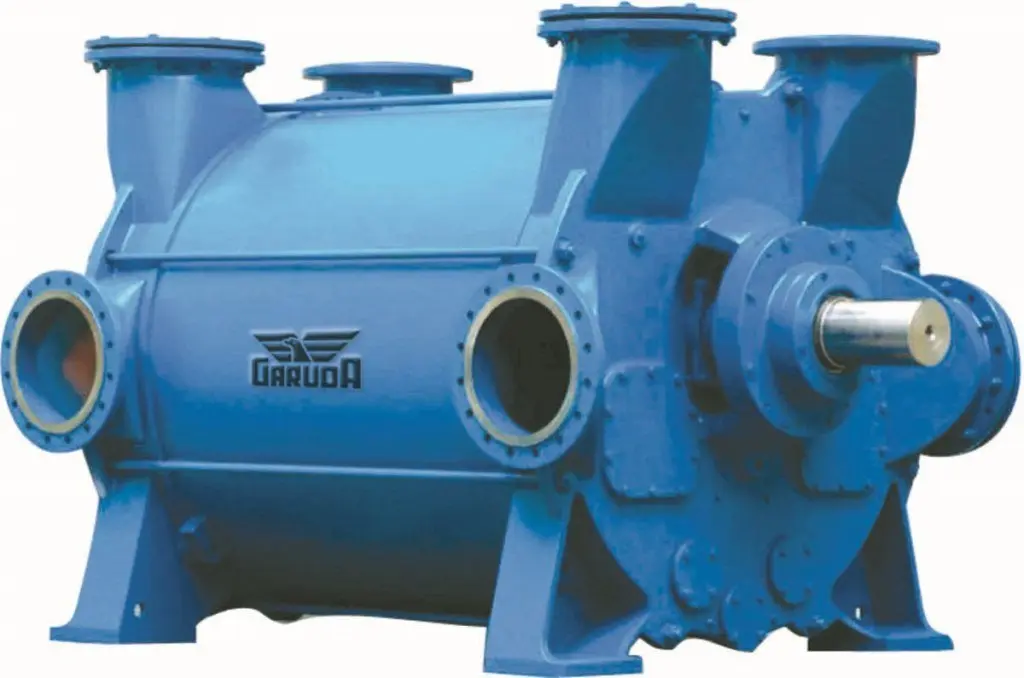

LIQUID RING VACUUM PUMPS
KEY FEATURES:
High-efficiency operation with low power consumption
Capable of handling wet, dry, and saturated gases
Robust and compact design for continuous duty
Corrosion-resistant materials for aggressive media
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Capacity: Up to 10,000 m³/hr
Ultimate Vacuum: Up to 0.05 mbar (abs)
Operating Pressure Range: Atmospheric to deep vacuum
Motor Power: Up to 800 kW (As per model and application)
Temperature Range: 5°C to 90°C (depending on sealing and construction

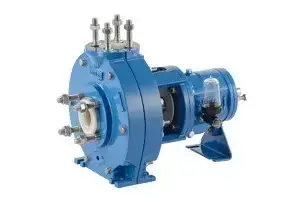

ISO-2858 DESIGN NON-METALLIC CENTRIFUGAL PUMPS
Key Features:
Cast iron armours with injection moulded wetted parts are designed to handle higher hydraulic pressures and flange loads
Non metallic pumps are excellent alternatives to expensive super alloy pumps for hazardous, corrosive and toxic media
Design Specifications:
Capacity [Q]: up to 210 m³/hr (925 US gpm) 1100 US gpm (250 m³/hr)
Head [H]: up to 100 m (328 ft)/40 D (122 m)
Motor Power (P): up to 55 kW (75 hp) 120 hp (90 kW)
Viscosity: up to 150 mPa (cP)
Suction Lift: 8 m (26 ft) with priming chamber*

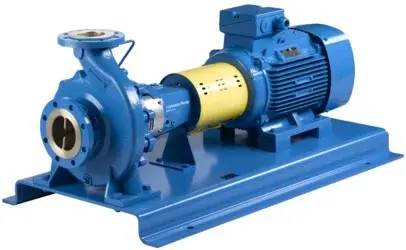

ISO-2858 DESIGN CENTRIFUGAL PUMPS
KEY FEATURES:
Standardized and modular design
Flanges according to ISO 7005 PN 16
Outstanding hydraulic performance
High efficiency impeller
Easy maintenance through the Back-Pull-Out principle
MOC: SS316, SS304, DUPLEX, CS, CI, A-20, HAST-C/B
Design Specifications:
Max. capacity: 1500 m³/h
Max. delivery head: 140 m
Max. liquid temp.: 250°C
Max. pressure: 16 bar (10 bar)
Max. speed: 3600 rpm

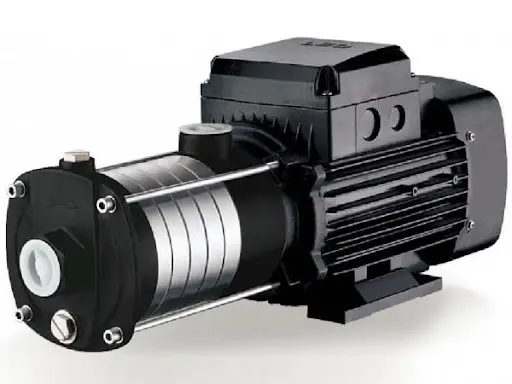

HORIZONTAL MULTISTAGE PUMPS
KEY FEATURES:
Ability To Generate A High Amount Of Pressure From A Simple Pump Unit
These Pumps Work At Low Noise And Have A Very Long Service Life
Low-Cost And High-Reliability Operations Make The Entire Pump System Cost-Effective
Their Simple Design Makes Them Easy To Integrate And Use In Pump Systems
Design Specifications:
Capacity: Up to 28 m³/hr
Head: Up to 77 Mtr
Discharge Size: 25mm to 50mm
Power Range: 0.37-7.50 kW
Temperature: Up to 104°C

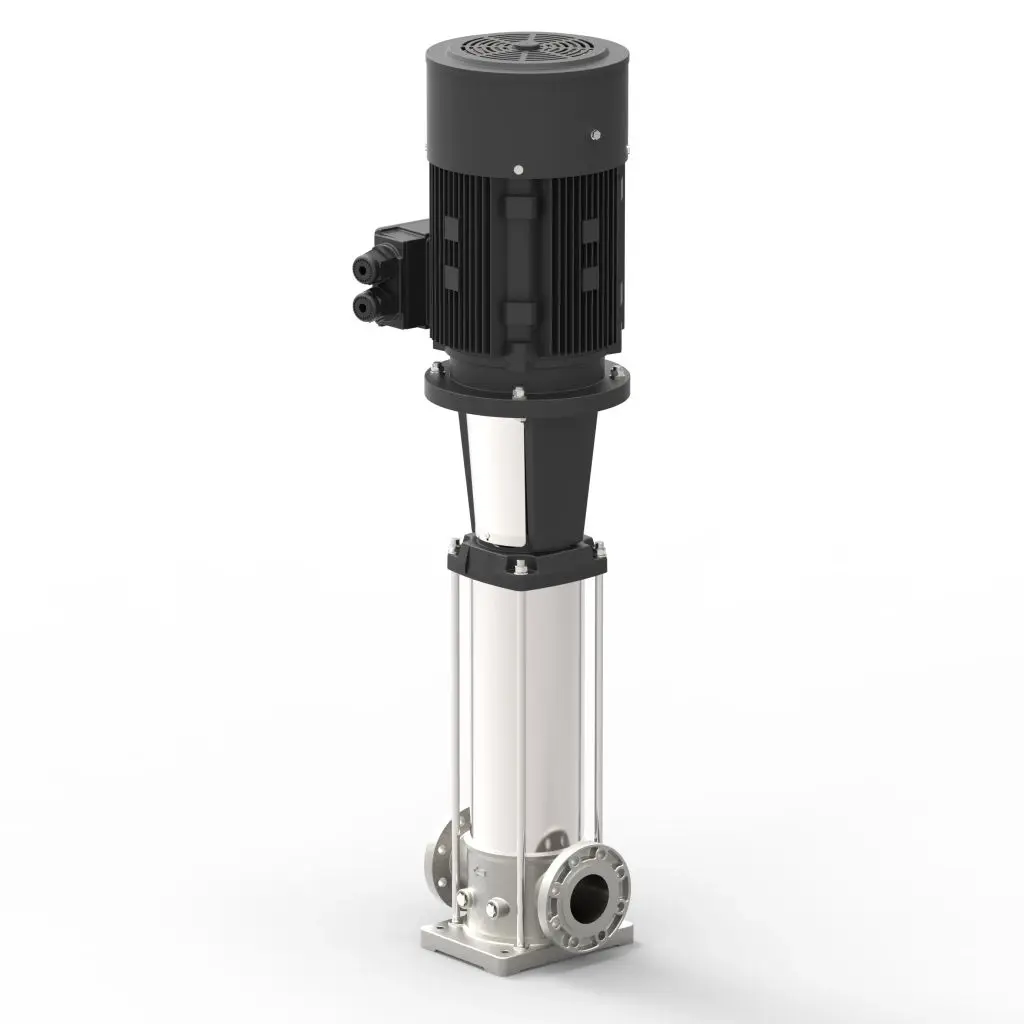

VERTICAL MULTISTAGE PUMPS
KEY FEATURES:
Able to Generate A High Level Of Pressure Serving Fluids To High Head Levels
Direct Drive Pump And Motor Shafts Are Designed For Positive
Air Vent Provided In Casing Cover Ensures Proper Venting To Avoid Dry Run
A Low Axial Thrust Impeller Helps In Extending The Motor Bearing Life
Design Specifications:
Capacity: Up to 1280 m³/hr
Power Range: 0.37-45 kW
Head: Up to 320 Mtr
Discharge Size: 32mm to 100mm
Temperature: -15°C to 120°C

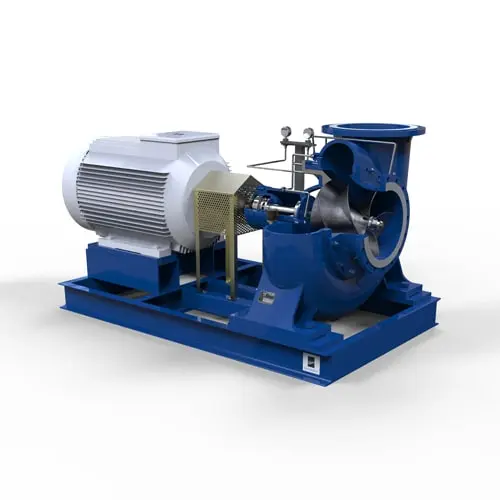

MIXFLOW PUMPS
KEY FEATURES:
Low head, high capacity pumps
Gland packed/mechanical seal
50HZ/60HZ availability
Option available in horizontal as well as vertical delivery position
Design Specifications:
Delivery size from 200 mm to 650 mm (8 to 26)
Capacity up to 7000 m³/hr (30,820 US gpm)
Head up to 30 meters (90 ft)
Temperature: 5°C to 140°C

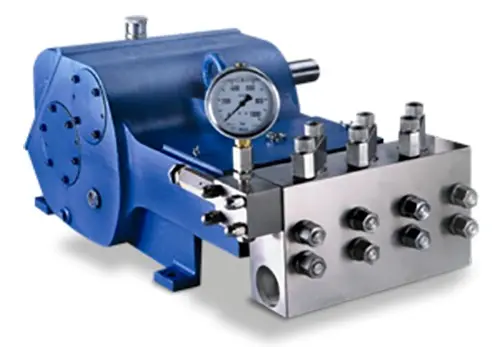

TRIPLEX PLUNGER PUMP
KEY FEATURES:
It Consists of Three Plunger Arrangements Working In Tandem
The Pump Design is Simple and Easy to Install
Can Handle Highly Viscous Liquids or Fluids with Solid Particles
Generates Very High Discharge Pressure Consistently
Design Specifications:
Capacity: Up to 300 m³/hr
Pressure: Up to 1500 Kg/cm²
Discharge Size: Customised
Temperature: Customised
MOC: CI, SS304, SS316
